Mining explosion proof starter intrinsically safe switchgear

Mining Explosion Proof Starter Mining Explosion Proof Starter Mining Explosion Proof Starter Mining Explosion Proof Starter Mining Explosion Proof Starter

Mining explosion proof starter intrinsically safe switchgear

The explosion proof switchgear is mainly used for starting and stopping three-phase asynchronous motors in coal mines through local control or intrinsic safety remote control, and can be reversed during shutdown.


  • Brand:

    WANTAI

  • Item NO.:

    KJZ Series

  • Payment:

    T/T

  • Product Origin:

    China

  • Color:

    Blue

  • Shipping Port:

    China Port

  • Lead Time：

    45 Working days
Inquiry now
Application

The mining explosion proof starter intrinsically safe switchgear is mainly used in coal mine and other surrounding media containing methane, coal dust mixture of explosive gas environment, in AC 50Hz voltage 1140V or 660V or 380V three-phase neutral point is not grounded line, local control or remote control three-phase asynchronous motor start, stop, and can be reversed during shutdown (Model N can control the forward and reverse of three-phase asynchronous motors).

Mining Explosion Proof Starter

Technical advantages and functional characteristics

1. Equipped with local control and intrinsic safety remote control functions (Models with N only have intrinsic safety remote control function)
2. Equipped with automatic water level control function, it can automatically control the start and stop of the water pump based on the water level (models without N have this function)
3. Featuring a menu style operation structure, large LCD Chinese display, fault inquiry, fault recording, and corresponding fault alarm information functions, and the ability to record the specific time of the fault occurrence
4. Equipped with intelligent screen integration functions such as RS-485, Ethernet, Bluetooth, WiFi, handheld terminal APP one touch connection, and LINUX operating system. RS-485 communication adopts Modbus RTU communication protocol format, while Ethernet and WiFi adopt Modbus TCP protocol format, facilitating networking and communication mode selection

5. Has reliable mechanical interlocking and electrical locking functions

Mining Explosion Proof Starter

Main technical parameters

Model
 Rated current
 Rated voltage
 External dimensions
 Weight

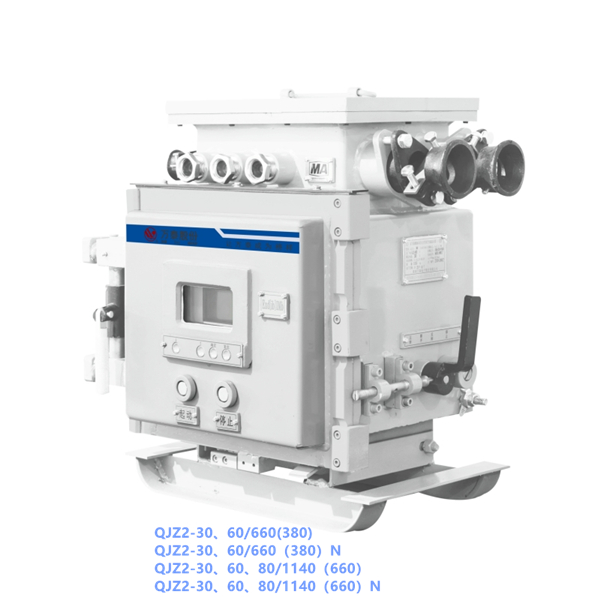

QJZ2-30, 60/660(380)
30A, 60A
660V or 380V
590mm×410mm×603mm
112kg
QJZ2-30, 60, 80/1140(660)
30A, 60A, 80A
1140V or 660V
 590mm×410mm×603mm
 112kg
QJZ2-120/1140(660)
120A
 1140V or 660V
 605mm×460mm×795mm
 152kg
QJZ2-200/1140(660, 380)
200A
1140V or 660V or 380V
 650mm×500mm×748mm
 175kg
QJZ2-315, 400/1140(660, 380)
315A, 400A
 1140V or 660V or 380V
 710mm×520mm×760mm
240kg
QJZ2-500, 630/1140(660)
500A, 630A
 1140V or 660V
 896mm×630mm×1076mm
444kg
QJZ2-30, 60/660(380)N
30A, 60A
 660V or 380V
 590mm×410mm×603mm
 120kg
QJZ2-30, 60, 80/1140(660)N
30A, 60A, 80A
 1140V or 660V
 590mm×410mm×603mm
 120kg
QJZ2-120/1140(660)N
120A
 1140V or 660V
 605mm×460mm×795mm
 160kg
QJZ2-200/1140(660, 380)N
200A
1140V or 660V or 380V
 670mm×520mm×775mm
 242kg

Note: Models with N are all reversible starters
